Gigabyte · Placa base AMD

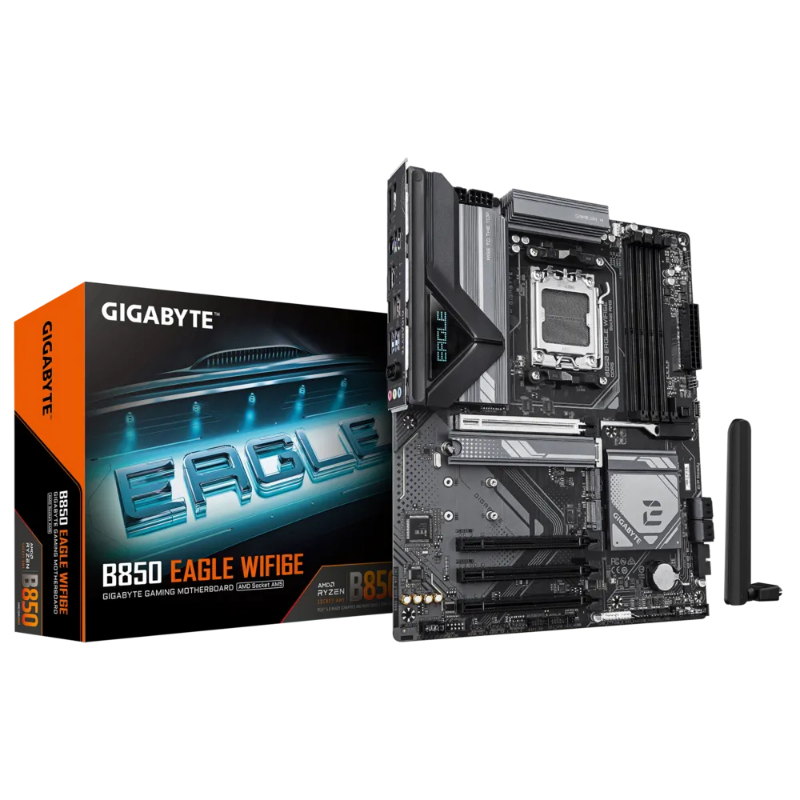

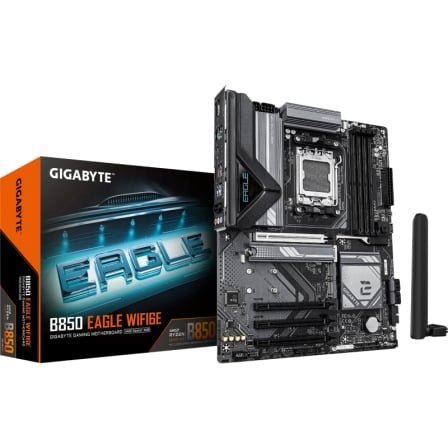

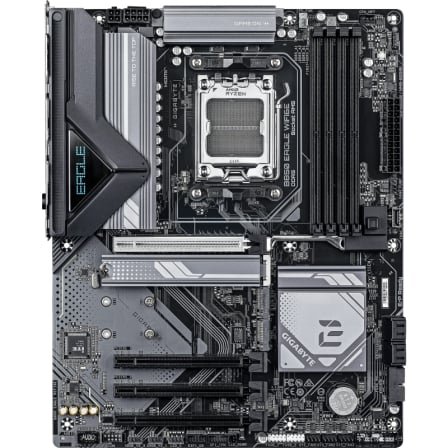

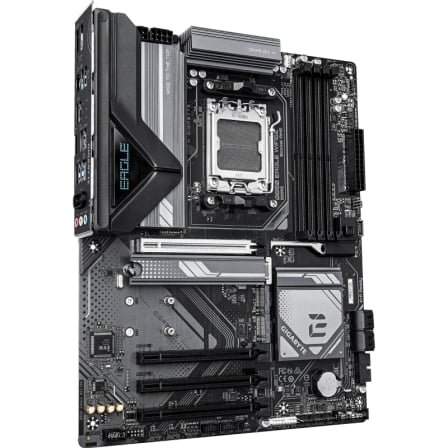

Placa Base Gigabyte B850 EAGLE WIFI6E Socket AM5/ DDR5/ PCIe 5.0

Ref. 9MB85EGL6-00-G10EAN 4719331866587
SocketAM5
ChipsetB850
FormatoATX
MemoriaDDR5 · hasta 256 GB
M.23 x M.2
169,00 €IVA incluidoEn stock
Recógelo gratis en nuestra tienda de Sevilla
A casa en 3-4 días: 5,95 € · gratis desde 300 €
Urgente 24/48 h: 6,90 € · gratis desde 300 €

Las unidades son de nuestros almacenes, no de la tienda física.

¿Dudas? Te asesoramos: 637 418 068 · 954 922 100

Características

Ver las características (21)Ocultar

Rendimiento

Chipset
B850
Generación CPU
Zen 5
PCIe
PCIe 5.0
RAM máxima
256 GB
Ranuras RAM
4
Socket
AM5
Tipo RAM
DDR5
Velocidad RAM
8200 MHz

Conexiones

Bluetooth
Bluetooth 5.3
Cantidad USB
4 x USB 2.0, 4 x USB 3.0, 1 x USB-C
Cantidad vídeo
1 x HDMI, 1 x DisplayPort
LAN
1 Gbit
M.2
3 x M.2
Tipo USB
USB 2.0, USB 3.0, USB-C
Tipo vídeo
HDMI, DisplayPort
SATA
4 x SATA
USB internos
1 x USB 3.0, 2 x USB 2.0, 1 x USB-C
WiFi
WiFi 6E

Otros

Fabricante
Gigabyte
Iluminación
ARGB
Tamaño
ATX

Descripción

CPU.

AMD Socket AM5, support for:.

AMD Ryzen™ 9000 Series Processors/.

AMD Ryzen™ 8000 Series Processors/.

AMD Ryzen™ 7000 Series Processors.

(Go to GIGABYTE's website for the latest CPU support list.).

Chipset.

AMD B850.

Memory.

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory.

Dual channel memory architecture.

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ''Memory Support List'' on GIGABYTE's website for more information.).

Onboard Graphics.

Integrated Graphics Processor with AMD Radeon™ Graphics support:.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz.

* Support for DisplayPort 1.4 version and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz.

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.).

Audio.

Realtek® Audio CODEC.

High Definition Audio.

2/4/5.1/7.1-channel.

* You can change the functionality of an audio jack using the audio software.

To configure 7.1-channel audio, access the audio software for audio settings.

LAN.

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps).

Wireless Communication module.

Intel® Wi-Fi 6E AX210 (PCB rev.

1.0).

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands.

- BLUETOOTH 5.3.

- Support for 11ax 160MHz wireless standard.

Realtek® Wi-Fi 6E RTL8852CE (PCB rev.

1.1).

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands.

- BLUETOOTH 5.3.

- Support for 11ax 160MHz wireless standard.

(Actual data rate may vary depending on environment and equipment.).

Expansion Slots.

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:.

_x001B_ AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode.

_x001B_ AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode.

_x001B_ AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode.

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:.

- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3).

Storage Interface.

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:.

_x001B_ AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs.

_x001B_ AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs.

_x001B_ AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs.

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:.

_x001B_ AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs.

_x001B_ AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs.

_x001B_ AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs.

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs.

4 x SATA 6Gb/s connectors.

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices.

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices.

USB.

CPU:.

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support.

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel.

Chipset:.

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header.

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header).

- 4 x USB 2.0/1.1 ports on the back panel.

Chipset+USB 2.0 Hub:.

- 4 x USB 2.0/1.1 ports available through the internal USB headers.

Internal I/O Connectors.

1 x 24-pin ATX main power connector.

1 x 8-pin ATX 12V power connector.

1 x 4-pin ATX 12V power connector.

1 x CPU fan header.

1 x CPU fan/water cooling pump header.

3 x system fan headers.

1 x system fan/water cooling pump header.

3 x addressable RGB Gen2 LED strip headers.

1 x RGB LED strip header.

3 x M.2 Socket 3 connectors.

4 x SATA 6Gb/s connectors.

1 x front panel header.

1 x front panel audio header.

1 x USB Type-C® header, with USB 3.2 Gen 1 support.

1 x USB 3.2 Gen 1 header.

2 x USB 2.0/1.1 headers.

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only).

1 x reset button.

1 x reset jumper.

1 x Clear CMOS jumper.

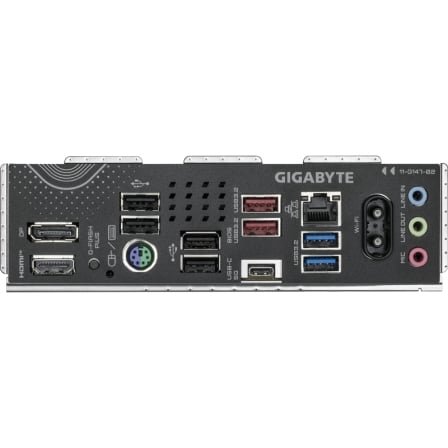

Back Panel Connectors.

1 x DisplayPort*.

1 x HDMI port*.

1 x Q-Flash Plus button.

4 x USB 2.0/1.1 ports.

1 x PS/2 keyboard/mouse port.

2 x USB 3.2 Gen 2 Type-A ports (red).

1 x USB Type-C® port, with USB 3.2 Gen 1 support.

1 x RJ-45 port.

2 x USB 3.2 Gen 1 ports.

2 x antenna connectors (2T2R).

3 x audio jacks.

* Actual support may vary by CPU.

I/O Controller.

iTE® I/O Controller Chip.

BIOS.

1 x 256 Mbit flash.

Use of licensed AMI UEFI BIOS.

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.

Form Factor.

ATX Form Factor; 30.5cm x 24.4cm

  • Chipset: AMD B850
  • Formato: ATX
  • Hdmi: Si
  • Imagen Salida: Graficos en CPU, HDMI, Displayport
  • Memoria Maxima: 256GB
  • Microprocesador Integrado: No
  • Multi-Grafica: No
  • N Bancos De Memoria: 4
  • N Conexiones SATA: 4
  • N USB 2.0: 4 Traseros, 4 Internos
  • N USB 3.2 Gen1: 2 Traseros, 2Internos, 1 Trasero Tipo C, 1 Interno Tipo C
  • N USB 3.2 Gen2: 2 Traseros
  • Pci: 1 PCIe 5.0 x16 , 3 PCIe 3.0
  • Raid: Si
  • SATA 6Gb/S: 4
  • Socket: AMD AM5
  • Tecnologia De Memoria: DDR5
  • Tipo De Raid: 0,1,10
  • USB 3.0: Si
  • USB3.1 Interno: Si

  Part Number: 9MB85EGL6-00-G10 EAN: 4719331866587
