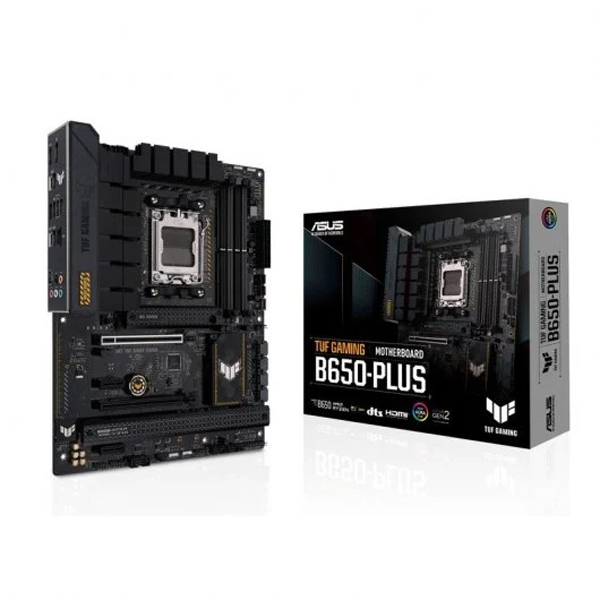

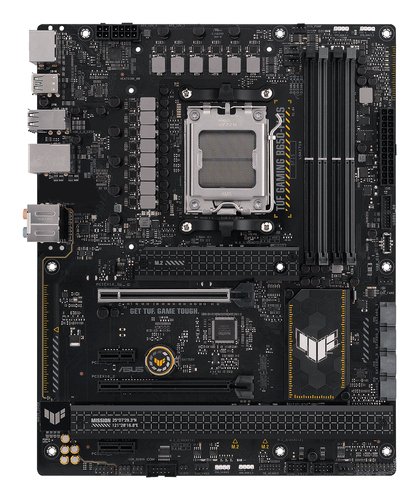

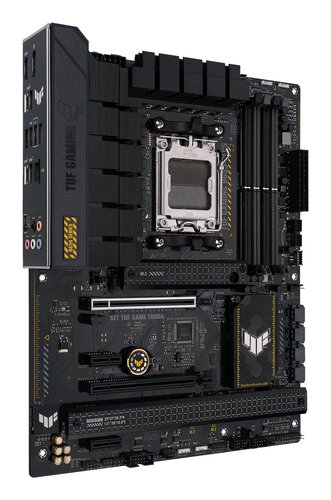

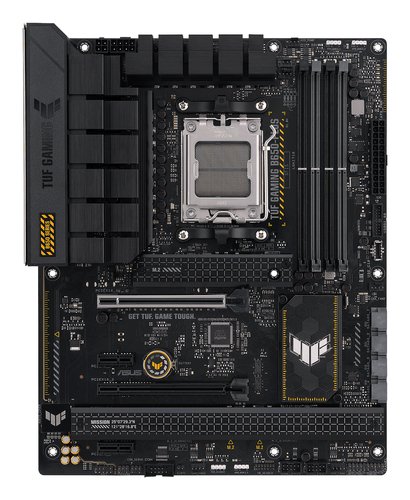

ASUS TUF GAMING B650-PLUS Skt AM5 4DDR5 DISPLAYPORT HDMI 3xM.2

TUF GAMING B650-PLUS

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series

Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD B650

Memoria

4 x DIMM, Max. 128GB, DDR5

6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Gráficos

1 x DisplayPort*

1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** VGA resolution support depends on processors’ or graphic cards’ resolution.

Ranuras de expansión

AMD Ryzen™ 7000 Series Desktop Processors*

1 x PCIe 4.0/3.0 x16 slot(s)

AMD B650 Chipset

1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

2 x PCIe 4.0/3.0 x1 slots

* Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).

Almacenamiento

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type

2242/2260/2280(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**

4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

USB

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Power pre-regulator reduces power input noise to ensure consistent performance

– Premium audio capacitors

– Dedicated audio PCB layers

– Audio cover

– Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Puertos de E/S del panel posterior

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

Conectores de E/S internos

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )

1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x Aura RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4®) header

Características especiales

ASUS TUF PROTECTION

– DIGI+ VRM (- Digital power design with DrMOS)

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– TUF LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– ProCool

– Pre-mounted I/O shield

– SafeDIMM

Aura Sync

– Aura RGB header(s)

– Addressable Gen 2 header(s)

Funciones de software

ASUS Exclusive Software

Armoury Crate

– Aura Creator

– Aura Sync

– Fan Xpert 4

– Power Saving

– Two-Way AI Noise Cancellation

AI Suite 3

– TurboV EVO

– DIGI+ VRM

– PC Cleaner

TUF GAMING CPU-Z

DTS Audio Processing

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Sistema operativo

Windows® 11

Windows® 10 64-bit

Factor de forma

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Part Number: 90MB1BY0-M0EAY0
EAN: 4711081912767
