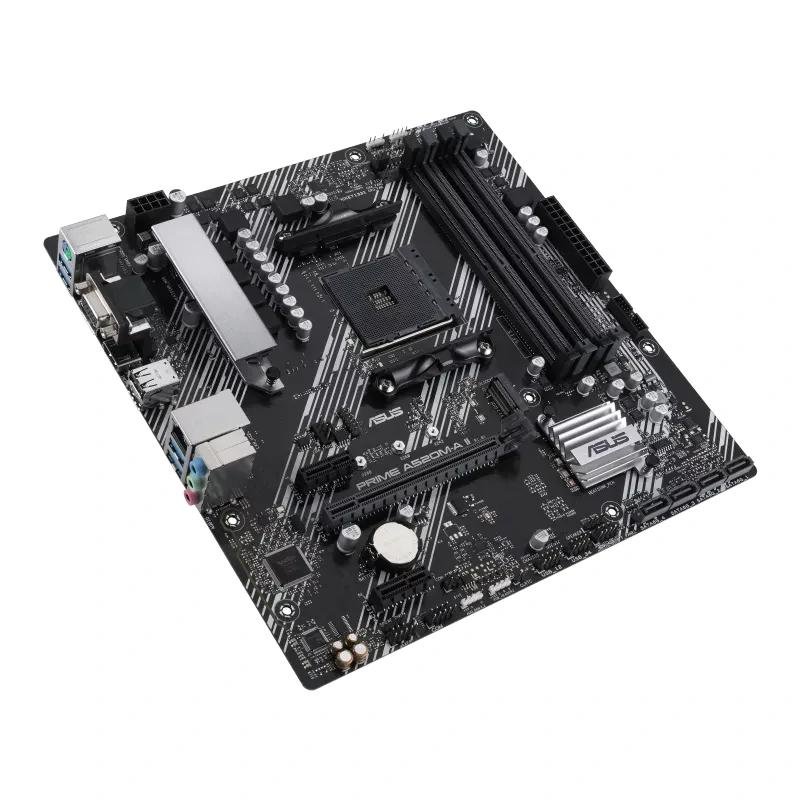

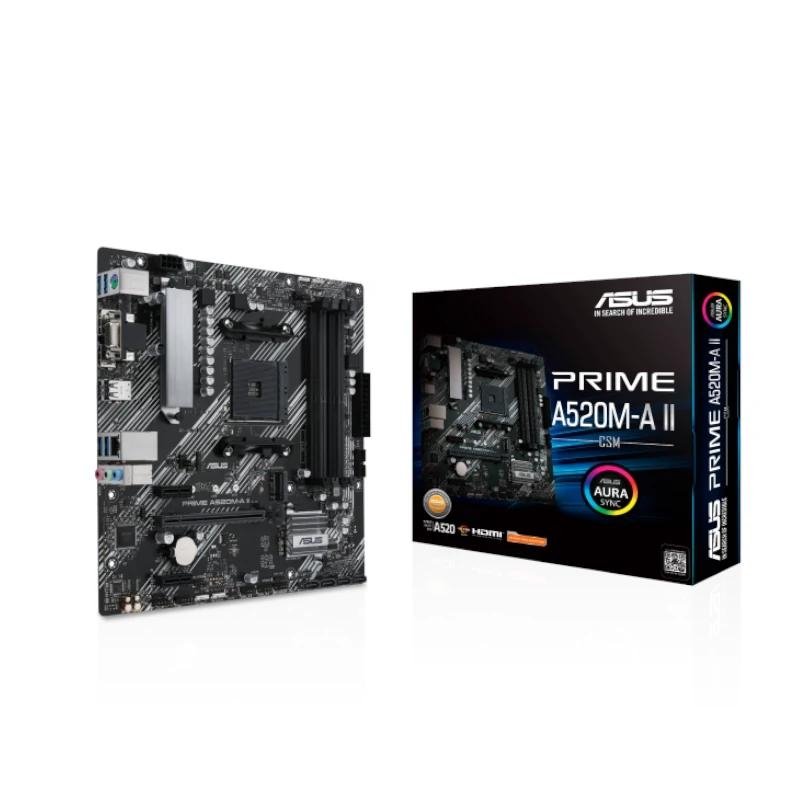

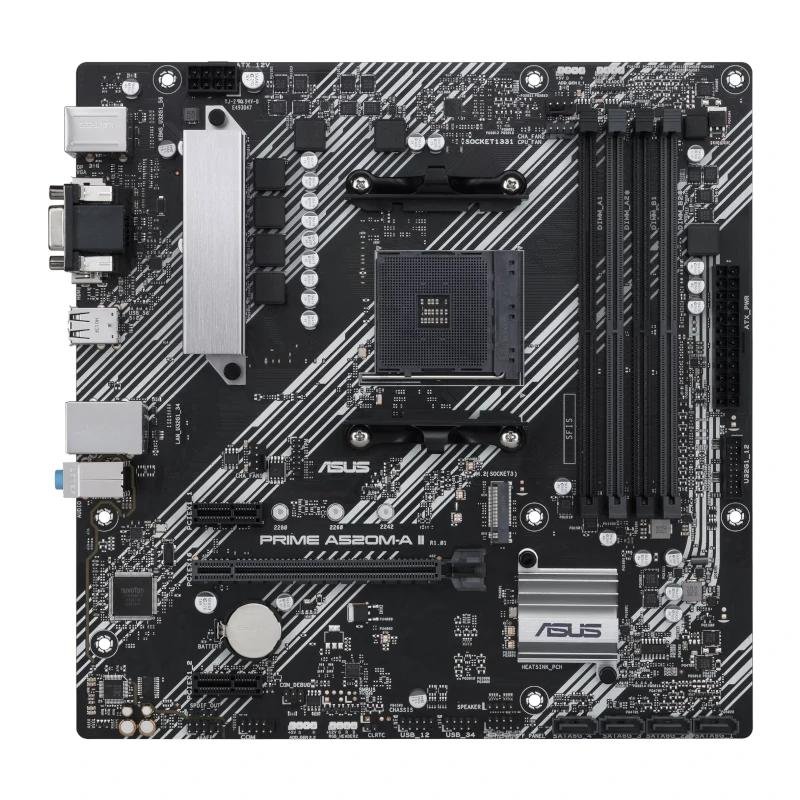

Asus Prime A520M-A II/CSM

Zócalo AMD AM4: Listo para procesadores de escritorio Ryzen™ Serie 5000/ Serie 4000 G/ Serie 3000.
Refrigeración integral: disipador térmico VRM, disipador térmico PCH y Fan Xpert 2+.
Conectividad ultrarrápida: compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 1 tipo A.
Aura Sync RGB: encabezados RGB integrados y encabezados direccionables Gen 2 para tiras LED RGB, fácilmente sincronizables con hardware compatible con Aura Sync.
ASUS Control Center Express (ACCE) para una gestión más sencilla de los terminales de TI.
Especificaciones:.
CPU.
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors.
*Refer to www.asus.com for CPU support list.

Chipset.
A520.
Memory.
4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory*.
Dual Channel Memory Architecture.
*ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics.
1 x DisplayPort 1.2.
1 x HDMI™ 2.1(4K@60Hz).
1 x D-Sub.
* Graphics specifications may vary between CPU types.
Expansion Slots.
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors.
1 x PCIe 3.0 x16 slot (supports x16 mode).
AMD A520 Chipset.
2 x PCIe 3.0 x1 slots.
Storage.
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports.
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors.
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes).
AMD A520 Chipset.
4 x SATA 6Gb/s ports.
Support Raid 0, 1, 10.
Ethernet.
1 x Realtek 1Gb Ethernet.
USB.
Rear USB:Total 6 ports.
4 x USB 3.2 Gen 1 ports (4 x Type-A).
2 x USB 2.0 ports (2 x Type-A).
Front USB:Total 6 ports.
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports.
2 x USB 2.0 headers support additional 4 USB 2.0 ports.
Audio.
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*.
– Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking.
– Supports up to 24-Bit/192 kHz playback”.
Audio Features.
– Audio Shielding.
– Premium audio capacitors.
– Dedicated audio PCB layers.
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports.
4 x USB 3.2 Gen 1 ports (4 x Type-A).
2 x USB 2.0 ports (2 x Type-A).
1 x DisplayPort.
1 x HDMI™ port.
1 x D-Sub.
1 x Realtek 1Gb Ethernet port.
3 x Audio jacks.
1 x PS/2 Keyboard/Mouse combo port.
Internal I/O Connectors.
Fan and cooling related.
1 x 4-pin CPU Fan header.
2 x 4-pin Chassis Fan headers.
Power related.
1 x 24-pin Main Power connector.
1 x 8-pin +12V Power connector.
Storage related.
1 x M.2 slot (Key M).
4 x SATA 6Gb/s ports.
USB.
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports.
2 x USB 2.0 headers support additional 4 USB 2.0 ports.
BIOS.
128 Mb Flash ROM, UEFI AMI BIOS.
Manageability.
WOL by PME, PXE.
Form Factor.
microATX.
24.4cm x 24.4cm

• Chipset: AMD A520
• Formato: Micro ATX
• Hdmi: Si
• Imagen Salida: Graficos en CPU, HDMI, Displayport, VGA
• Memoria Maxima: 128GB
• Microprocesador Integrado: No
• Multi-Grafica: No
• N Bancos De Memoria: 4
• N Conexiones SATA: 4
• N USB 2.0: 2 Traseros, 4 Internos
• N USB 3.2 Gen1: 4 Traseros, 2 Internos
• Pci: 1 PCIe x16 ,2 PCIe x1
• Raid: Si
• SATA 6Gb/S: 4
• Socket: AMD AM4
• Tecnologia De Memoria: DDR4
• Tipo De Raid: 0,1,10
• USB 3.0: Si
• USB3.1 Interno: Si

Part Number: 90MB17H0-M0EAYC
EAN: 4711081135395
